The Orvin Herbicide booms are used for controlling weed growth in rows and inter-rows for orchards and vineyards.

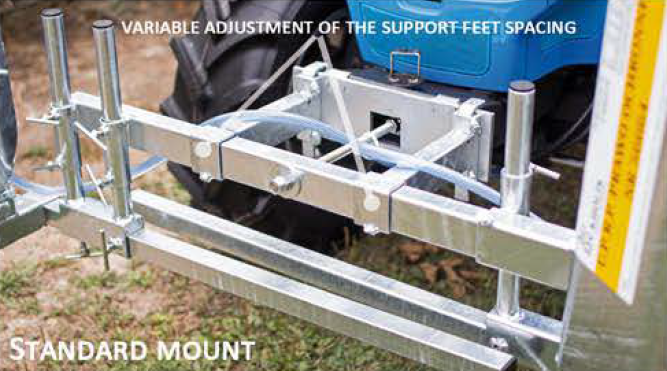

With excellent build quality, these sprayers have great durability. BHz is the base model. It is available as a single or double sided version, painted or hot-dip galvanized. Standard mount with adjustable support feet spacing allows mounting the boom to most types of tractors. There is also available: three-point linkage mount, carriage mount and side mounts (e.g. for C-330 and C-360 tractors).
Common features for this model include:
Shut-off vaIve (mounts in the cabin, included in the bundle)
Additional nozzle for expanded spraying width. Mounts on the extension arm (BHz only)
Tilting head (90° forward and backward) tilting end cover.

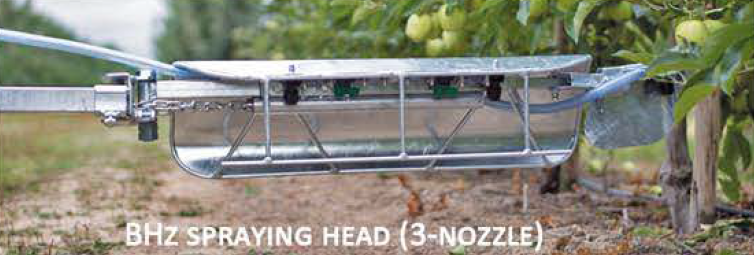

Curved shield of the head flattens the weeds and protects tree and bush branches from being sprayed.
Multiple types of mounts and adapters for different tractor types:
1: three-point linkage mount for BHz
2: side mount for BHz
3: carriage mount for BHz
|Part no||Boom Size||Select|
|BHz 4 Nozzle||4 Nozzle: Spraying Width 2.8mtr (1.4mtr per side), Dedicated Row Spacing: from 3.8-5.5mtrs|
|BHz 3 Nozzle||3 Nozzle: Spraying Width, 2.2mtr (1.1mtr per side), Dedicated Row Spacing: from 3.3-5mtrs|
|BHz 2 Nozzle||2 Nozzle: Spraying Width, 1.6mtr (0.8mtr per side), Dedicated Row Spacing: from 2.8-5mtrs|
See the Orvin Herbicide Boom Sprayer BHz in action
You will be able to view a full range of exciting videos showing all our machines actively working in real life conditions.
