Orizzonti Rotary Knife Trimmer CMC2 600

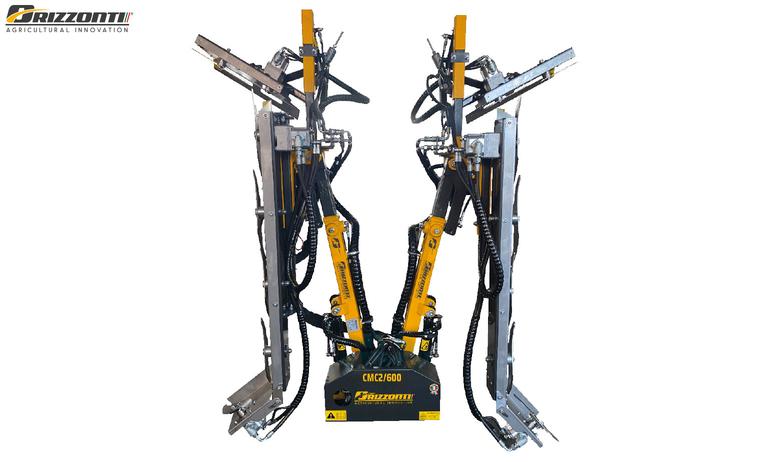

The CMC2/600 Orizzonti dual knife mobile column pruning machine, mounted on the front of the tractor, is the optimal solution for the management of large plots of vineyard in mainly hilly areas.
It has 2 knife vertical moving bars and 2 knife topping moving bars that enable clean, precise cutting of the plant.

As is evident in all the Orizzonti pruning machines that have an upper topping bar, the CMC2/600 also has in both the horizontal bars an anti shock system of 90° rotation of the same, offering greater safety during the cutting phase in the event of knocking into any obstacles such as cement poles or similar.

Both columns of the supporting structure of the CMC2/600 are fitted with a self-levelling system, characteristic of all the Orizzonti mobile pruning machines which ensures the stability of the vertical position of the mowing bars for the various movements of the machine during the work phase.

Click here for more information.

Requirements: Requires 180 bar with 30 lt. oil/min. Compatible with tractors of 50 hp/31 kw.

Download the brochure.
