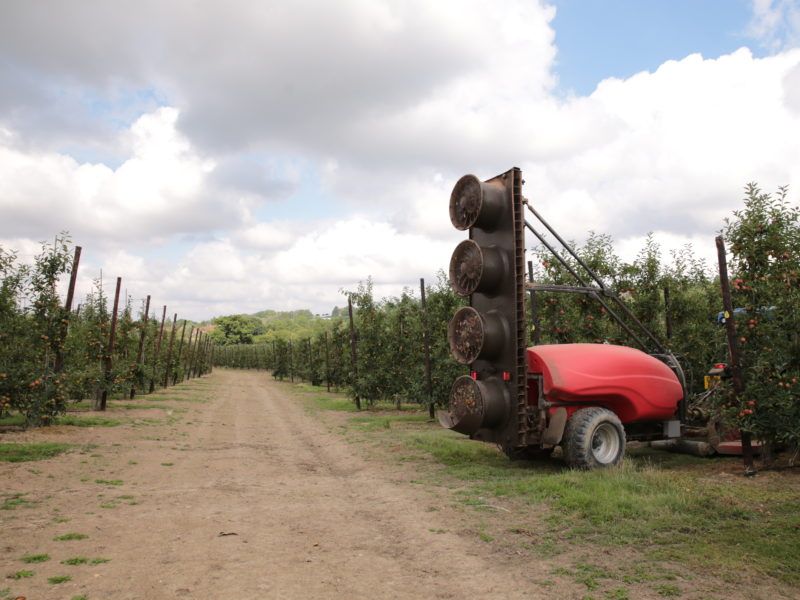

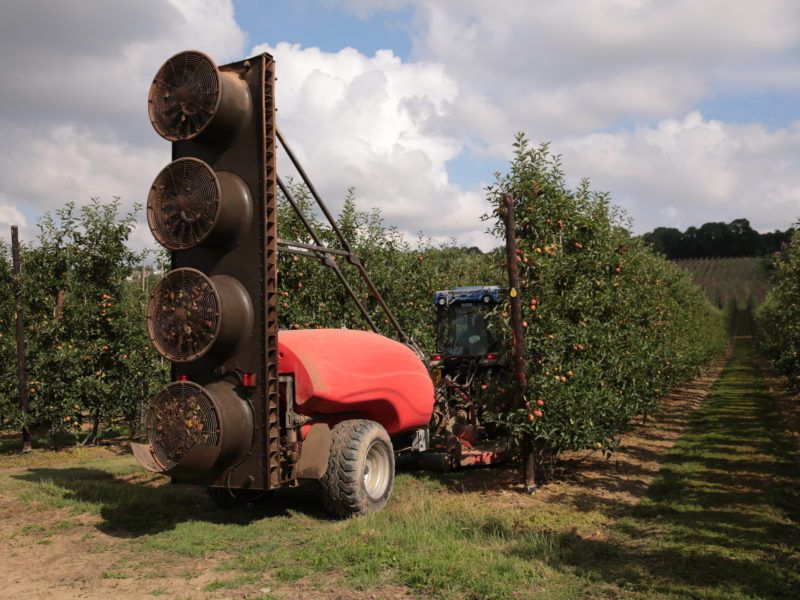

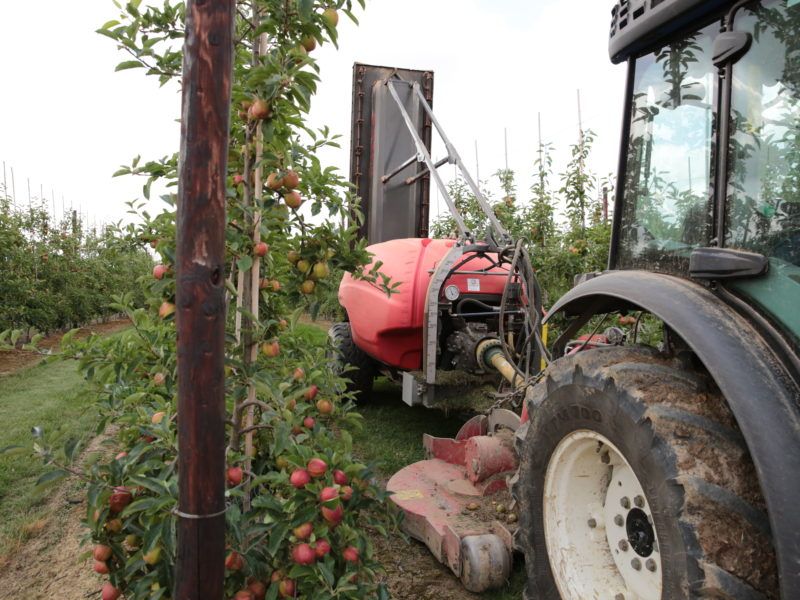

Kirkland Tower Quatt Sprayer
QUATT Tower SprayerQUATT Tower SprayerQUATT Tower Sprayer

Kirkland Tower Quatt Sprayer

The Kirkland Quatt model is the ultimate answer for orchards over 3mtr high. With all the outstanding features of the Triprop model as well as extra height, this is now a very popular choice with growers.

The standard spec on the Kirkland Tower Quatt Sprayer is as follows: Available in 1500ltr and 2000ltr tank sizes, 3.4mtr or 3.7mtr Tower height, four fans, 2 speed fan gearbox, twin nozzle bodies, comet 5 diaphragm 140ltr/min pump, two brass pressure filter housings and solenoids, bottle rinser/powder mixer, heavy duty wide angle PTO shaft, full road lighting, adjustable axle and drawbar, clean water tank and separate hand wash tank as standard. Fully galvanised and painted steelwork for long life. Standard width 1450mm.

See options below

To book a demo or discuss this product call 01622 843013 or email [email protected]

Product models available

Part No Description Select
SPBQU151 Kirkland Tower Quatt Sprayer - 24 Nozzles, 1500ltr / 3.4mtr
SPBQU152 Kirkland Tower Quatt Sprayer - 24 Nozzles, 1500ltr / 3.7mtr
SPBQU201 Kirkland Tower Quatt Sprayer - 24 Nozzles, 2000ltr / 3.4mtr
SPBQU202 Kirkland Tower Quatt Sprayer - 24 Nozzles, 2000ltr / 3.7mtr

Ask about our wide range of optional extras

Part Number Description
SPBOP01 High Pressure Piston Pump – 80ltr/min
SPBOP18 Brass AR 3 Diaphragm Pump – 135ltr/min
SPBOP02 Electrical Pressure Regulator Valve
SPBOP03 Hydraulic Agitator Pump Kit
SPBOP04 2 x Additional Electrovalves – To Shut Off Top Boom Section
SPBOP05 Large Wheels and Tyres 15.0/55-17 10ply (Makes Width 1550mm)
SPBOP10 Heavy Duty Super Hitch (N/A On Mos)
SPBOP06 Antidrip Triple Nozzle Bodies (Each)
SPBOP15 Brakes, Per Axle
SPBOP16 Double Axle (C/W Wheels 10.0/75-15.3 18ply)
SPBOP09 Kirkland Touch Screen Data Logging Computer System

See the Kirkland Tower Quatt Sprayer in action
